Image Sensor: Sony image Sensor
Video Resolution: Front FHD 1080P + Cabin HD 720P + Rear 720P
Lens Angle: Front 170 Degree + Cabin 170 Degree + Rear 160 Degree
Screen Saver: OFF/1min/3min
Decode Format: H.264

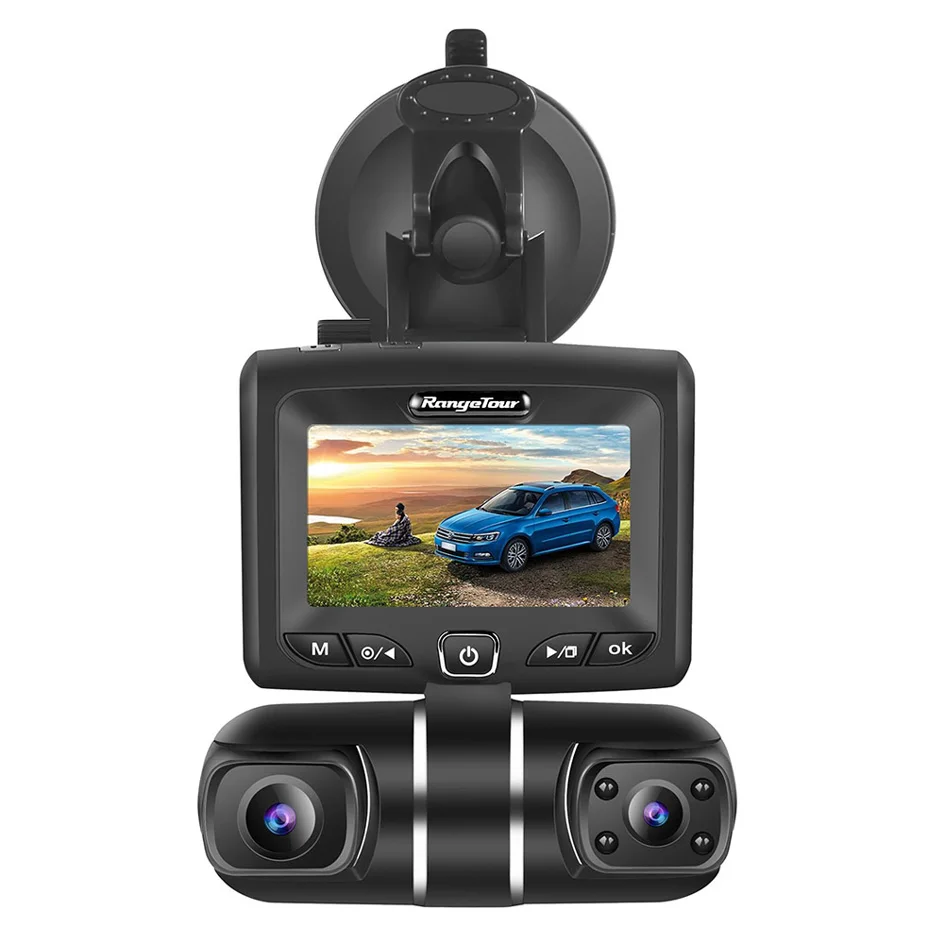

Screen: 3.0 inch HD Screen
Video format: TS
Photo format: JPG
GPS Logger: External GPS Moudle(Optional)
Super Night Vision: Yes
Loop Recording: 1min/2min/3min
Auto Power ON: Yes
Parking Montitor: Off/Low/High/Monitor 8h/Monitor 12h/Monitor 24h/Forever (The function need Hardwire Kit)
Picture in Picture: Yes
Battery Capacity: Built-in Super Capacitor (No Battery)
Power Interface: 5V 1.5A-2.0A
Max External Card Supported: TF 128G(not included)
Product size (L*W*H): 9.4*4.0*11.7cm/3.7*1.57*4.63in
1 x Car DVR Recorder
1 x Car Charger
1 x 3M Adhesive Sticker Bracket
1 x Suction Cup Bracket
1 x GPS Module(Optional)
1 x Rear Camera(Optional)
1 x Rear Camera Cable(Optional)
1 x User Manual

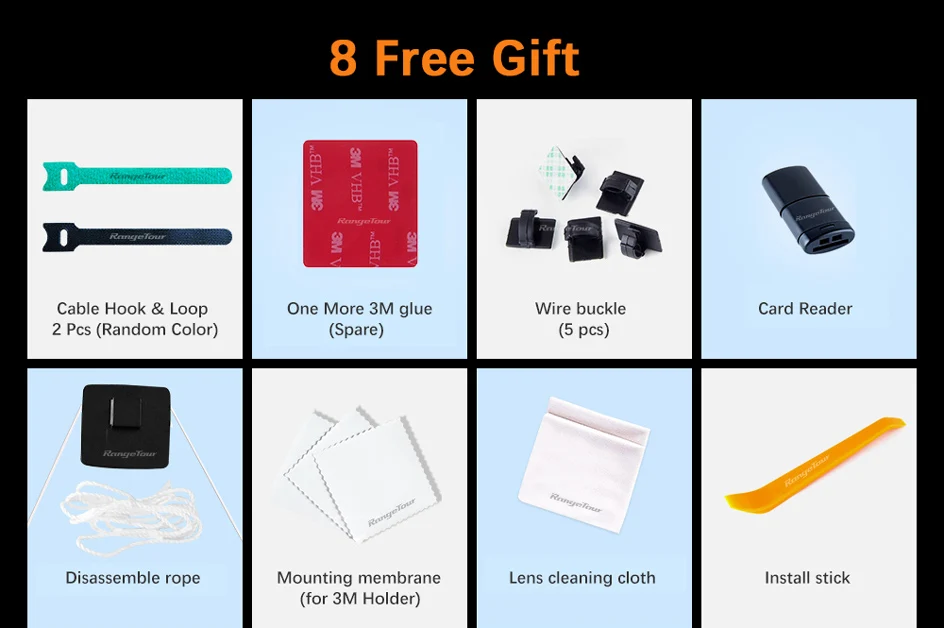

8 x Free Gift

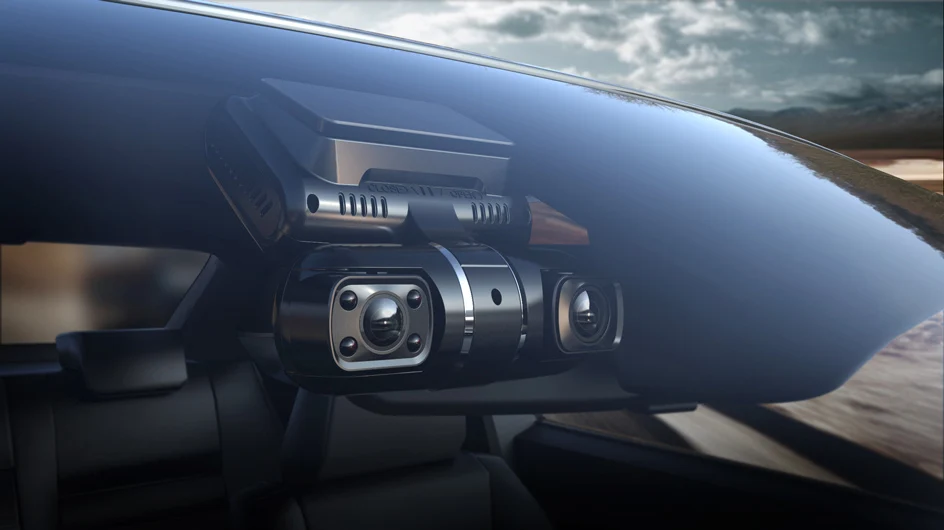

3 Camera Recording Simultaneously
With 1080P front camera + 720P cabin camera + 720P waterproof rear camera, the car camera can simultaneously record the ultra-clear front, cabin and rear roads.

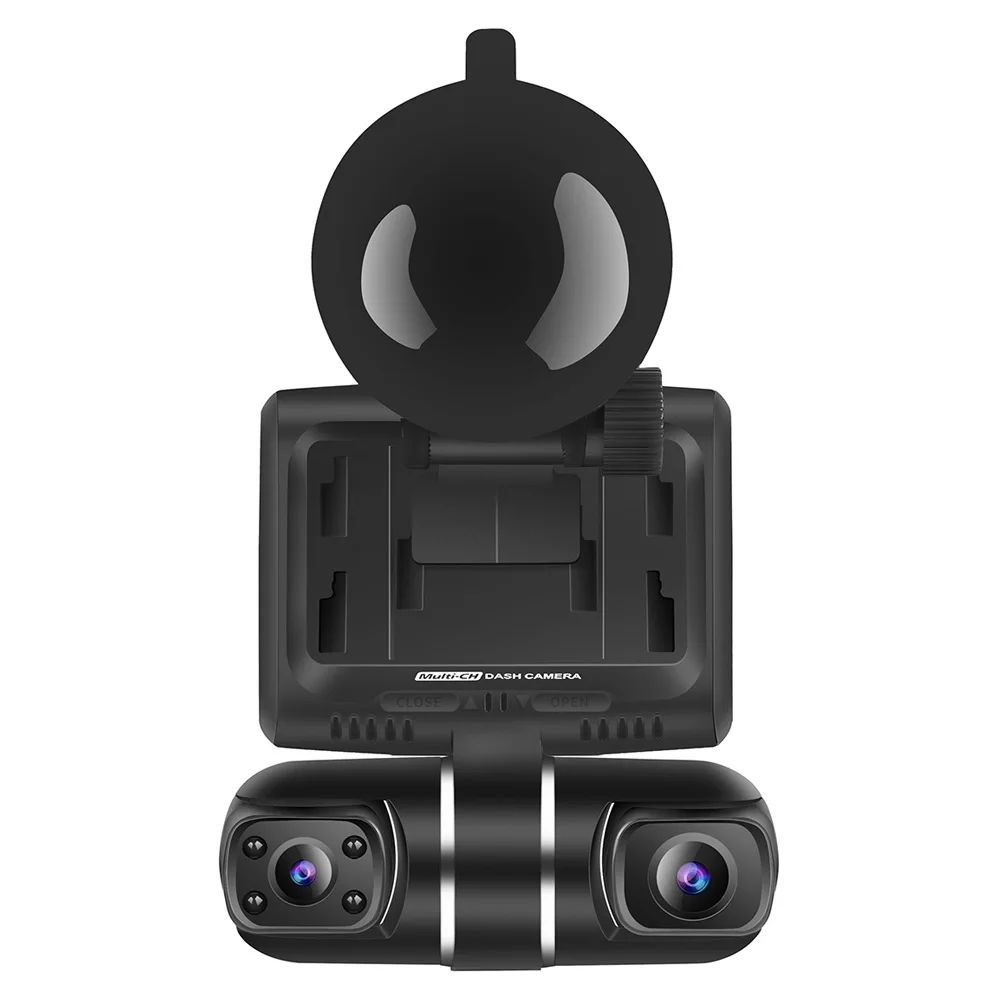

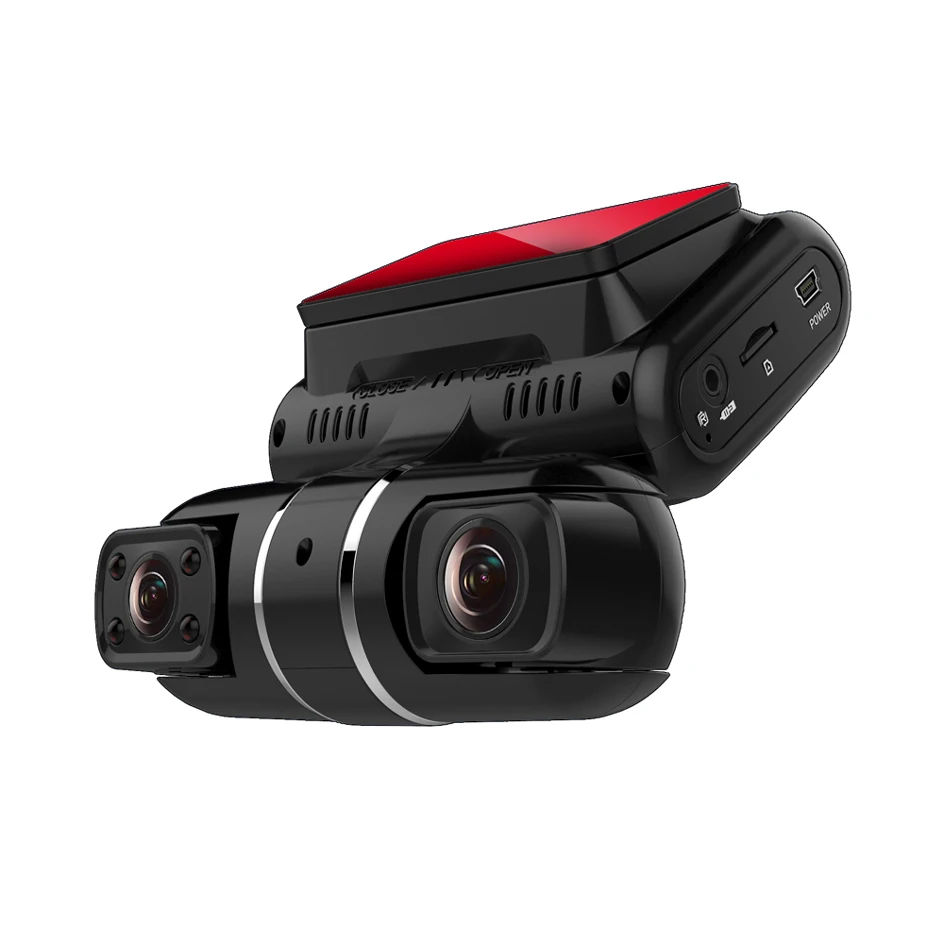

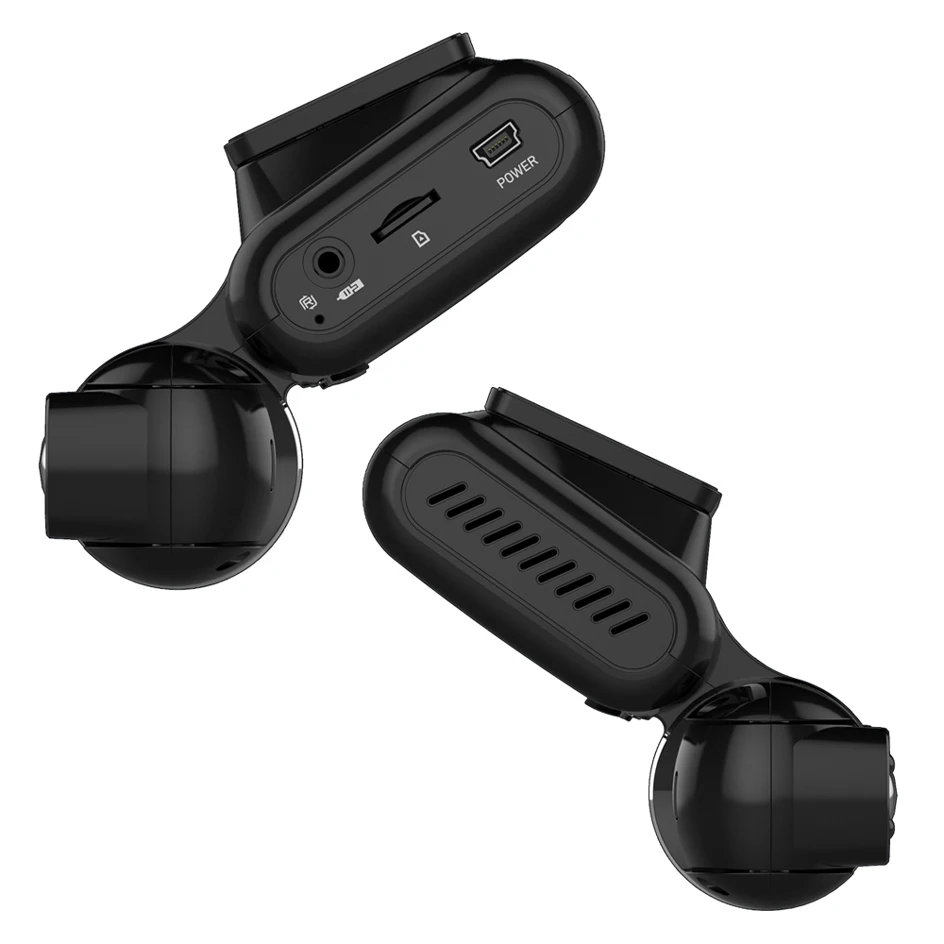

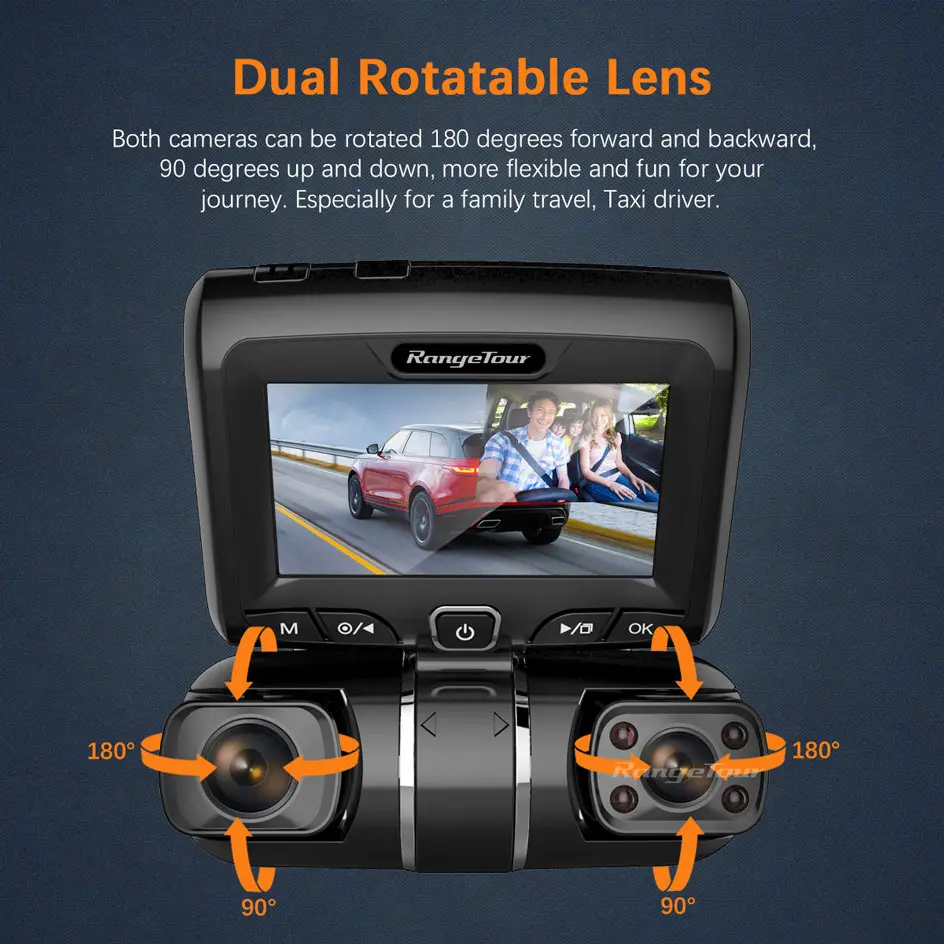

Dual Rotatable Lens
Both cameras can be rotated 180 degrees forward and backward, 90 degrees up and down, more flexible and fun for your journey. Especially for family travel, a Taxi driver.

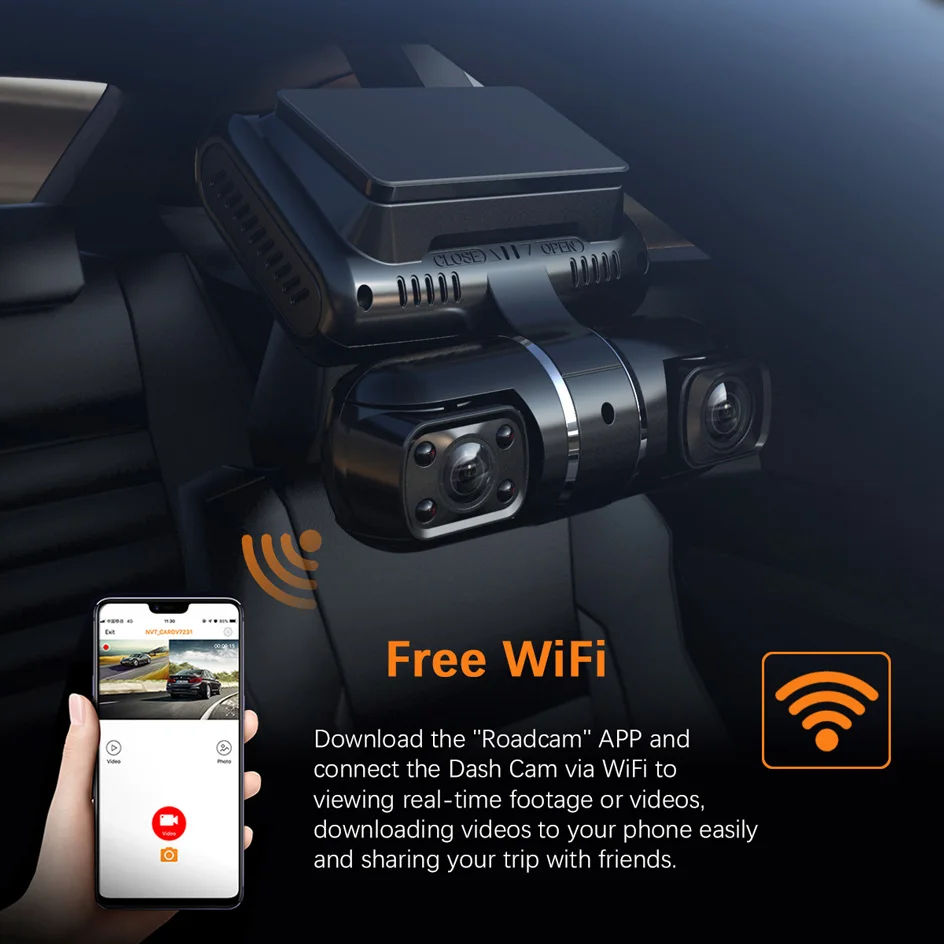

Download the “Roadcam” APP and connect the Dash Cam via WiFi to viewing real-time footage or videos, downloading videos to your phone easily and sharing your trip with friends.
GPS module(Optional) accurately logs your vehicles location, speed, latitude, longitude and route. And can be view on Google Map by “Roadcam” APP, or GPS player in computer.

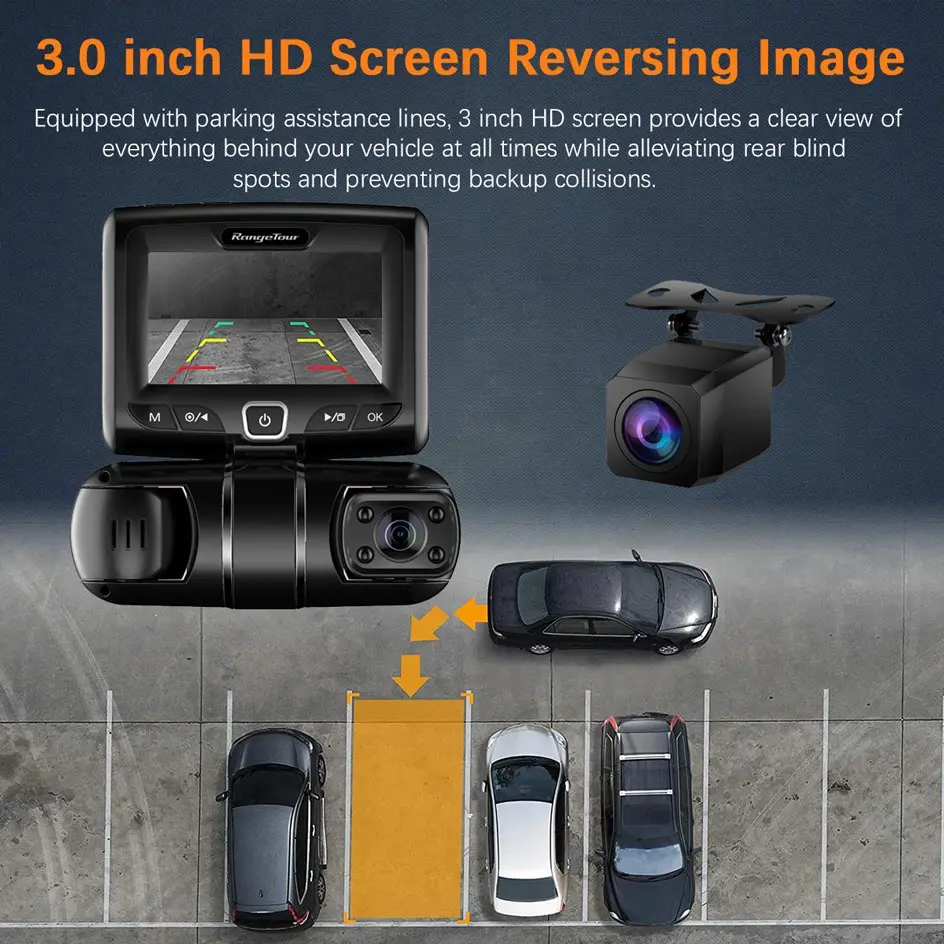

3.0 inch HD Screen Reversing Image
Equipped with parking assistance lines, 3 inch HD screen provides a clear view of everything behind your vehicle at all times while alleviating rear blind spots and preventing backup collisions.
Super Night Vision
Advanced Sony sensor captures crystal-clear detail even at night.
2 Ways for 24 Hour Parking Monitor
1. The dash cam will automatically turn itself on and record 1 minute video then turn off when collision or crash happens while parked; (need purchase Hardwire Kit separately)
2. The dash cam supports Time-Lapse Recording function，which can keep recording with extremely low power consumption while engine off. (need purchase Special Hardwire Kit separately)

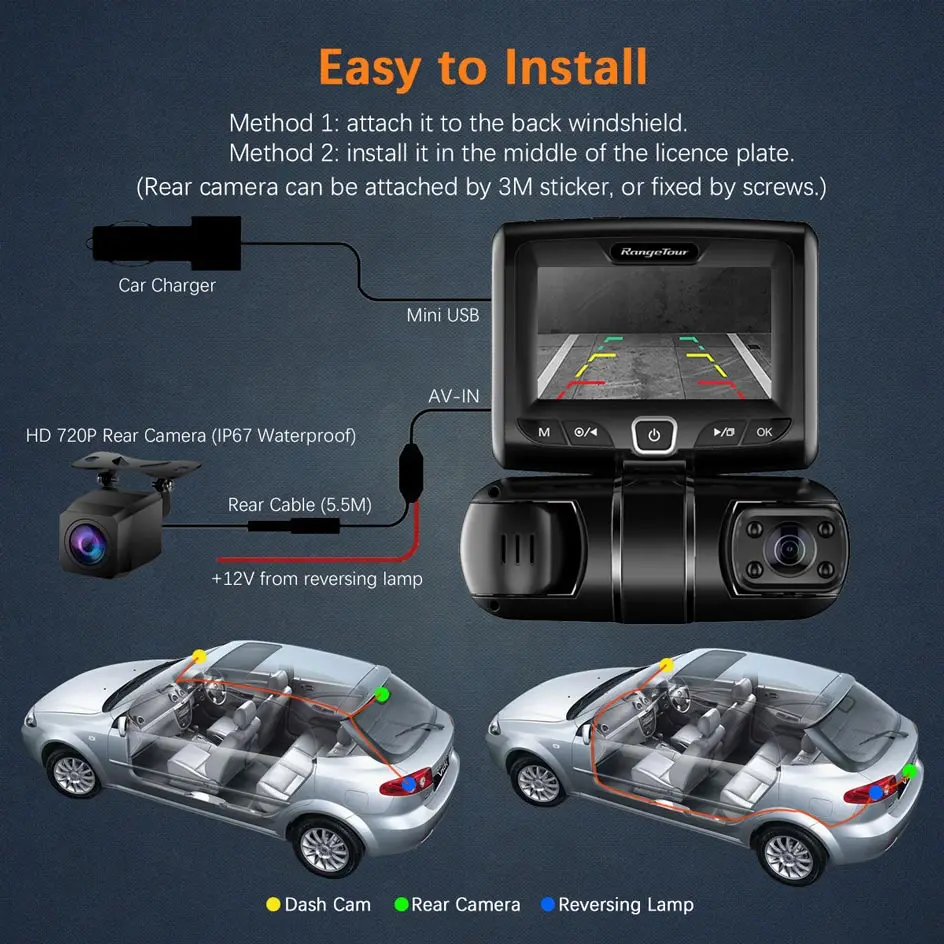

Easy to Install
330° rotatable rear camera, easily adjust lens angle to any direction you want. No drill mounting, easy installation.
waterproof Rear Camera:
Method 1: attach it to the back windshield.
Method 2: install it in the middle of the licence plate.(can be attached by 3M sticker, or fixed by screws.)
LDWS: Lane Departure Warning System
FCWS: Forward Collision Warning System
Super Capacitor (No Battery)
Built-in Super Capacitor. Prevent explosion, the camera can operate smoothly in high temperatures. Please always connect the dash cam to car charger while it is in use.
Loop Recording & G-Sensor
Footage is stored in loops of 1/2/3 minute segments according to your setting. Seamless Loop Recording overwrites the oldest footage with the newest upon filling a card to capacity. G-Sensor will lock footage in the event of an accident, the locked fragments will not be overwritten.
– Micro SD card required: Requires class10 card or above. We recommend use our micro SD card which is custom made for Car DVR. Please format the micro SD card on your dash cam before you can use it. You can find the format option on the menu.
– No built-in battery, replaced by super capacitor. Please always connect the dash camera to external power cord while it is in use. This dash cam has the “Auto Power Off” feature. When there is no external power connection, the dash cam will shut down, and time and date setting will be saved.
– Strongly suggest use original car charger.
– Super night vision capabilities to capture clear image in low-light conditions(except no light condition).
The inside camera uses special lens that can sense the infrared light, the lens will sense the infrared light from the sunlight during daytime, so the video will be partial pink. This inside camera performs optimally even in no light situations, but video will be black and white.
